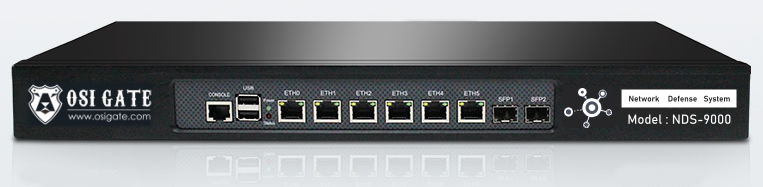

OSIgate Next Generation Firewall, Model NDS-9000
OPNsense Edition
- High-end features (QoS, GuestNet, VPN, IDS, etc..)
- Fail-safe (HA, MultiWAN, Failover)
- Easy to setup (Modern User Interface)
- Build-in reporting and monitoring
- Suricata Frequent updates
- Emerging Threat Ruleset updates
- Snort IDS/IPS Ruleset updates
Specification (may update without further notices)
| Name | OSIgate NDS-9000 |
|---|---|
| OS option | OPNsense, pfSense, Halon, FreeBSD, IPFire, RouterOS |
| Weight [Kg] | 2.4000 |
| Country of Origin | Assemble in China, Design in Hong Kong |
| Enclosure | 1U Rack Mount, Industrial cooling fan |
| Dimensions [W x H x D] | 430mm x 50mm x 250mm |
| CPU | Intel i7-4770, 3.4G, Quad Core, Octet Threads |
| Memory | 8GB |
| Storage | 256G SSD |
| Ethernet ports | 6 x GbE [Intel® ], 2 x SPF Optic ports |
| USB | 2 x USB2.0 (for keyboard, mouse, recovery USB) |
| Remote Management port | VGA console |
| Total Firewall Throughput | ~50Gbps |
| Maximum packets per second | ~4,000,000 pps |
| Maximum Port to Port Throughput | ~1Gbps |
| Maximum VPN Throughput | IPsec: ~500Mbps (AES256) OpenVPN: ~300Mbps (non AES256) Single tunnels |
| Maximum State table | ~30,000,000 estimation |
| Maximum Concurrent Sessions | ~15,000,000 estimation |
| Maximum VLANS | 4093 [above 50: GUI restrictions may apply] |
| Power Supply | Integrated with standard 3-pin C14 socket, AC 100~240V@50Hz~60Hz |
| Regulatory Compliance | FCC part 15 Class A, CE, Rohs |
| Storage & Operating conditions | Operating: 0 to +45°C / 10 to 90% r. H. non cond., Storage: -20 to +70°C / 10 to 90% r. H. non cond. |
| Package Content | UK/US/EU/CN power cord, Configuration cable, Quick start guide |
| Support and Hardware Warranty | ONE year hardware support and warranty |

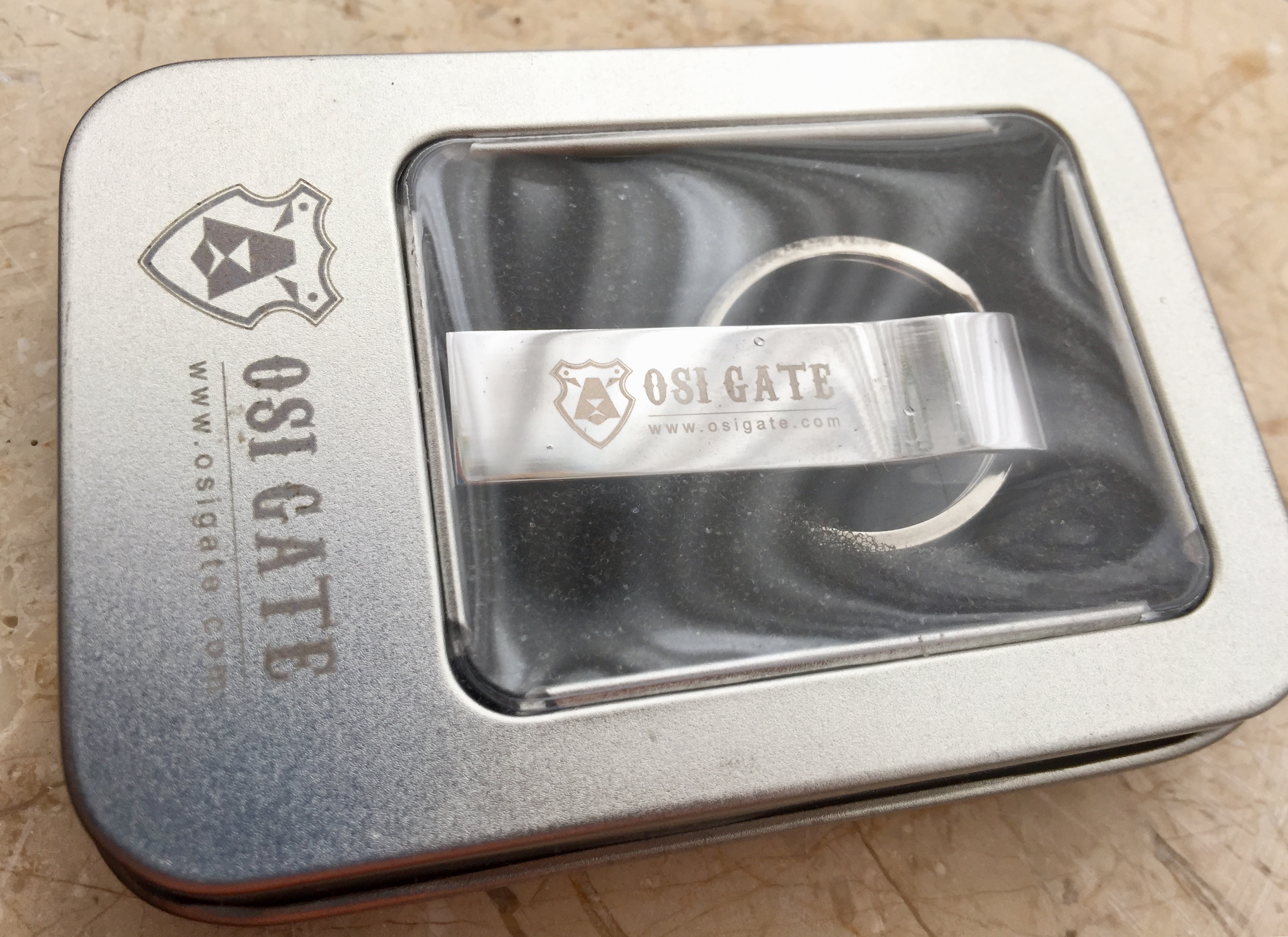

Bundled with one OSIgate Firmware Disaster Recovery USB
