OSIgate WiFi Central Access Controller

WiFi Access Controller manages multiple WiFi Access Points that allow WiFi devices to connect to the network. User can access the cluster of Access point once authenticated successfully at any AP.

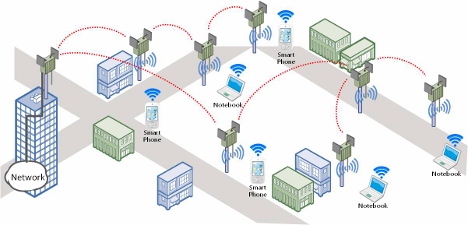

WiFi Access Point is as similar as WiFi router, just WiFi AP may consider a group of multiple AP devices, provided WiFi coverage for the big area, multi-floor building, multi-level warehouse, multi-room offices.

OSIgate Access Controller  can be deployed in either the public or private WiFi coverage. i.e. WiFi devices authentication, traffic management, access control, manage devices accessibility, access plan management, Time Management, access cross over multiple WiFi network, AP statistic ... etc. Optional SDWAN or SDWAN optimizer integration are available, cross city WiFi management is on the fly.





OSIgate WiFi Access Controller Edition or Cloud Edition

  • Professional gateway based on OSI seven-layer flow control.
  • Supports network flow control and manual flow control.
  • 3200+ application protocol identification. Maximize bandwidth utilization.
  • As a Integrated Internet gateway, flow control, AP management, and Web Portal authentication
  • OSIgate Access Control intelligent management, collaborate with multiple OSIgate Access Points.
  • Essential Internet Surfing behavior management, customized Internet Access Policy
  • Support Web GUI admin, cross-area or centralized management of multiple OSIgate Access Points.
  • Support VPN
  • Support Multi-WAN gateway, Access load balancing via different Telco operator.
  • Support WiFi Devices MAC blacklist and whitelist access control.
  • Support more than 10 kinds of access authentication methods
  • Support LDAP users integration
  • Multi-core, Low power consumption CPU, high-performance, suitable for small to large-scale deployment




OSIgate WiFi Access Controller with SDWAN and SDWAN optimizer integration are available !

OSIgate WiFi Access Controller Model 6000i, 4G RAM, 64G SSD, Fanless

Specification (may update without further notices)

Name OSIgate 6000i
Weight [Kg] 2.4000
Country of Origin Assemble in China, Design in Hong Kong
Enclosure mini box, Industrial fanless cooling, normal operation temp. in +49°C
Dimensions [W x H x D] 230mm x 50mm x 150mm
CPU Intel 4205, 2.4G, Quad Core
Memory 4GB RAM
Storage 64G SSD
Ethernet ports 4 x GbE [Intel® ], 1 x realtek for CARP/HAproxy
USB 2 x USB2.0 (for keyboard, mouse, recovery USB...), 2 x High speed USB
,Remote Management port HDMI console
Power Supply Integrated with standard 3-pin C14 socket, AC 100~240V@50Hz~60Hz
Regulatory Compliance FCC part 15 Class A, CE, Rohs
Storage & Operating conditions Operating: 0 to +45°C / 10 to 90% r. H. non cond., Storage: -20 to +70°C / 10 to 90% r. H. non cond.
Package Content UK/US/EU/CN power cord, Configuration cable, Quick start guide
Support and Hardware Warranty ONE year support and hardware warranty,



OSIgate WiFi Access Controller Model 5000i, 4G RAM, 64G SSD, Fanless


Specification (may update without further notices)

Name OSIgate 5000i, 4G, 64G SSD
Weight [Kg] 2.4000
Country of Origin Assemble in China, Design in Hong Kong
Enclosure Mini Desktop, Industrial Fanless cooling
Dimensions [W x H x D] 430mm x 50mm x 250mm
CPU Intel 3865 1.8G Dual Core, Low power consumption CPU
Memory 4G RAM
Storage 64G SSD
Ethernet ports 6 x GbE [Intel® ]
USB 2 x USB2.0 (for keyboard, mouse, recovery USB)
2 x USB3.0
Remote Management port VGA console
Total Firewall Throughput ~3Gbps
Power Supply Integrated with standard 3-pin C14 socket, AC 100~240V@50Hz~60Hz
Regulatory Compliance FCC part 15 Class A, CE, Rohs
Storage & Operating conditions Operating: 0 to +45°C / 10 to 90% r. H. non cond., Storage: -20 to +70°C / 10 to 90% r. H. non cond.
Package Content UK/US/EU/CN power cord, Configuration cable, Quick start guide
Support and Hardware Warranty ONE year support and hardware warranty,

OSIgate Global Support 24x7

From initial setup to mission-critical Firewall, SDWAN, NAS HA implementation and support ...
please call HK: +852 3694 0408, CN: +86.755 25904562 or email to sales_team @ osigate.com for enquiry.
